Louvered Pergola
We are manufacturer.All Pergola we can Produce.
- Two louver roofs that can be adjusted independently from 0-90° to keep out the sun, rain, and UV rays
- Curtains create shade and privacy when wanted
- Hidden drainage system that sends rain from the louvers to the base of the legs
- Netting protects from bites without blocking the view or the breeze
- Powder-coated aluminum frame is naturally water-safe
- Ground stakes and expansion screws for soft or hard ground
- Suitable for garden and outdoor places
- Assembly required
Your Leading Pergola Manufacturer in China
As a leading pergola manufacturer with over 10 years of experience in China, we specialize in producing premium outdoor pergolas for international clients including importers, wholesalers, e-commerce platforms and engineering projects. Our 20,000㎡ factory is equipped with advanced CNC machinery and a strict QC team, ensuring every product meets strict quality benchmarks for strength, weather resistance and aesthetics.
We provide one-stop solutions: from OEM/ODM design support to efficient logistics and after-sales service. Our pergolas are widely recognized in European and American markets for their durability and cost-effectiveness. Partner with us, and you’ll gain access to stable supply, factory-direct pricing and customized solutions tailored to your market demands.
Technical Data for the Pergola
- Specification
- Material
Specification about the Pergola
| Size | 3*4m |
|---|---|
| Material | Aluminum |
| Style | Modern |
| Product Dimensions | 157.5″L x 118″W x 88.5″H |
| Item Weight | 325.2 Pounds |
| Frame Material | Full Aluminum |
| Water Resistance | Yes |
| Shape | Rectangular |
| UV Protection | Yes |
| Assembly Required | Yes |
| Color | Brown, Grey, White ,Black, Natural |
| Color | Grey |
| Windproof Level: | 7-8 (with Expansion Screws) |
| Floor Area | 127.6 Square Feet |
| Item Weight | 325 pounds |
| Snow-bearing Capacity: | 8.17 lbs. per foot squared |
| Item model number | SF001 |
| Usage | patio, law, garden, parkColorDark |
Material for the Pergola
| Material Specification | (Length * Width * Thickness)MM |
|---|---|
| Foot Tube | Aluminum 100*100*1.3 |
| Inner Reinforced of Foot Tube | Aluminum 96.7*96.7*1.2 |
| Left Cross Beam Aluminum | 120*78*1.35 |
| Right Cross Beam Aluminum | 120*78*1.35 |
| Front Cross Beams | 120*78*1.35 |

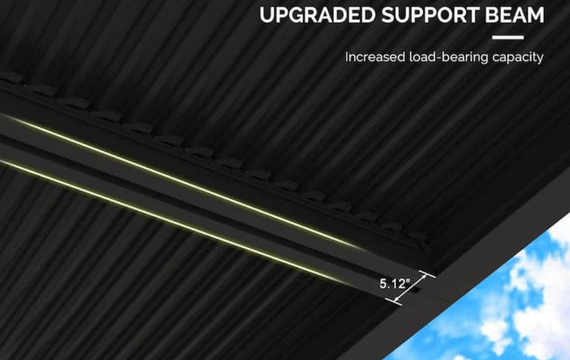

| Middle Cross Beam | Aluminum 160*105*1.35 |
| Large Louver Panel | Aluminum 15.1*151*1.1 |
| Small Louver Panel | Aluminum 20.5*120*1.05 |
| Flat Aluminum Strip | Aluminum 15*5.0 |
| Curtain 1 | 180g polyester PA Coating |
| Curtain 2 | Mesh |

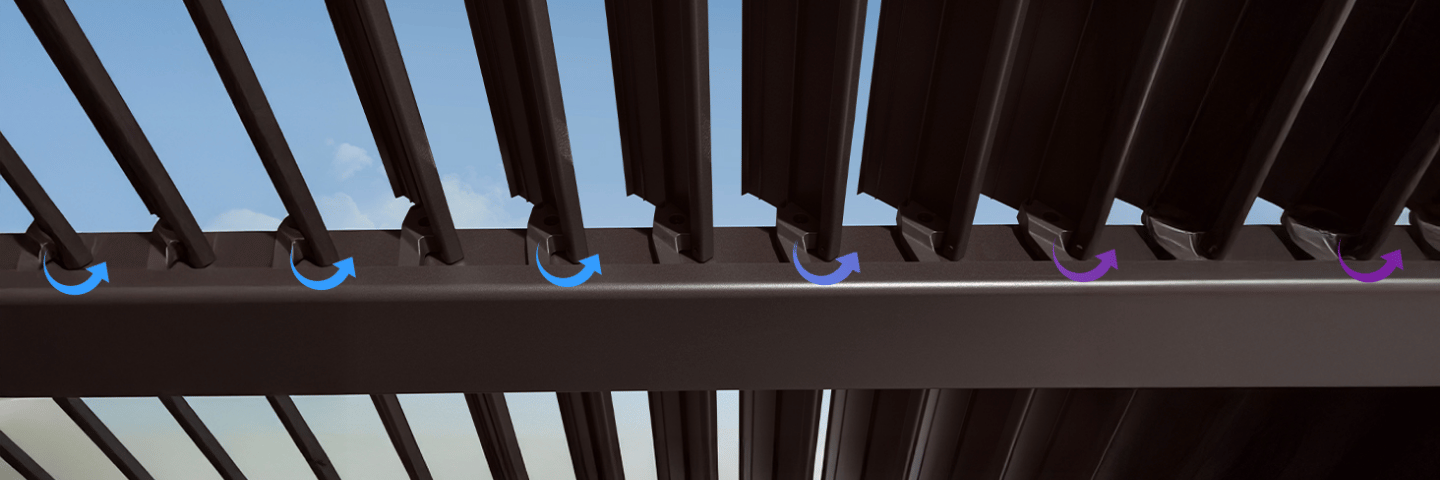

Features about the Louvered Pergola Roof
Opening the roof
Full aluminum for solid structure support. Presents the open state of the louvered roof, where black horizontal louver slats are arranged in parallel. Through the gaps between the louvers, a bright blue sky with fluffy white clouds is visible, and dazzling sunlight slants down from the upper right corner. The frame is labeled “OPEN VIEW”, directly demonstrating the light transmission and viewing effect when the roof is open.
Closing the roof
Aluminum louvered roof, opening to create an open-air space for sunbathing.Presents the closed state of the louvered roof, with the main body being a solid black panel that is opaque. White and black explanatory texts are overlaid on the panel, labeling “TWO INDEPENDENT ADJUSTABLE ROOFS”, “CLOSE VIEW”, and a functional description of protection against sun, rain, and wind.

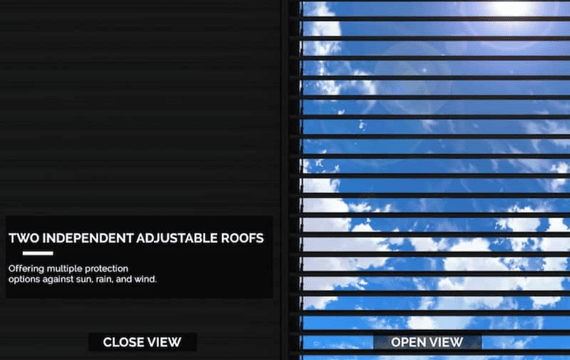

Opening and closing the roof
Have a split full aluminum panels on the left and right, showcasing two parts of the adjustable louvered roof, with an overall concise visual style that serves a product display purpose:
Overall vision: The contrast between black and white is striking, and the sense of enclosure on the left and the sense of transparency on the right form a sharp contrast, clearly highlighting the core adjustable feature of the product.
Selling Points about Pergola to Your Clients

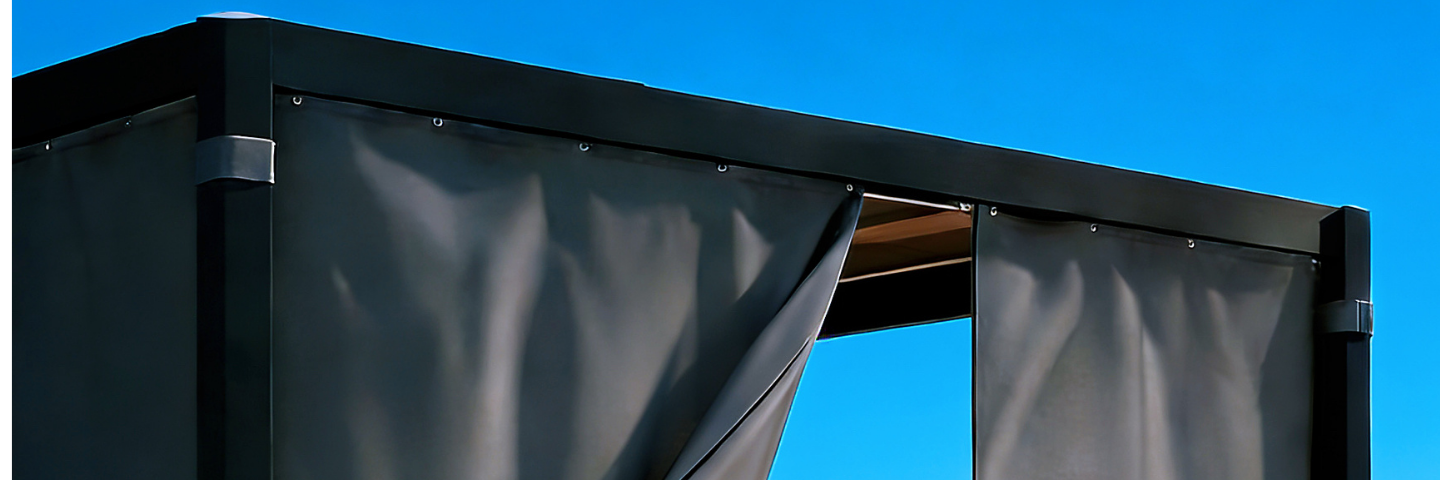

Features about the Pergola Side Wall

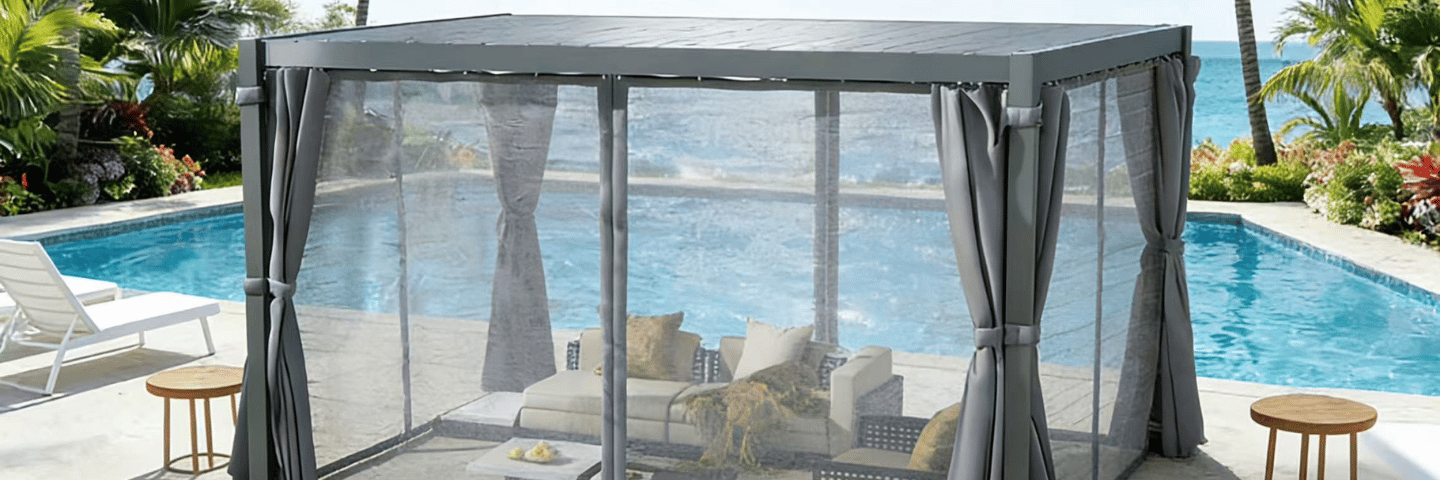

- Mesh Curtains
- Solid Fabric Curtains
The pergola netting sidewall is made by mesh. Protects from bites without blocking the view or the breeze
The solid fabric curtains is made by 180g polyester. providing shade and privacy.Protecting you from sunburn.

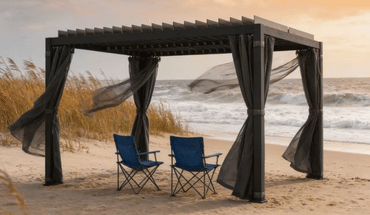

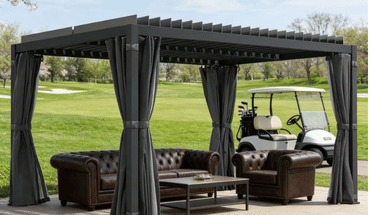

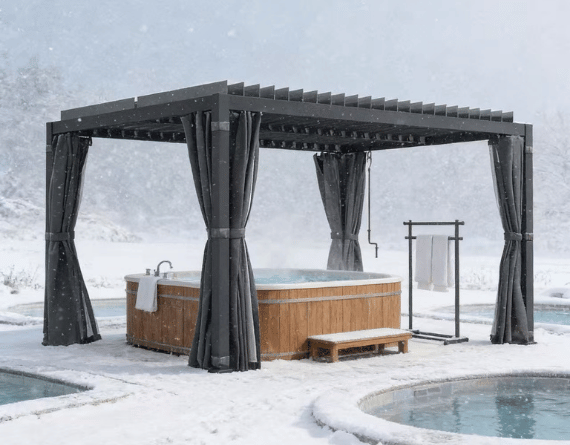

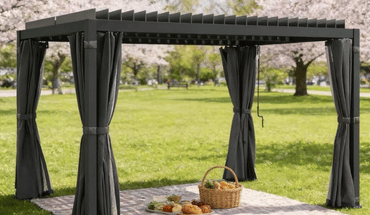

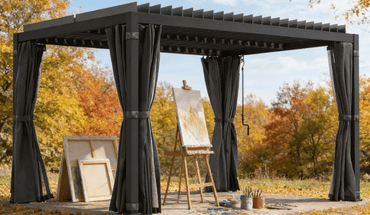

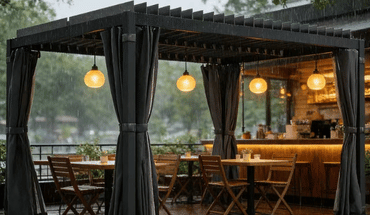

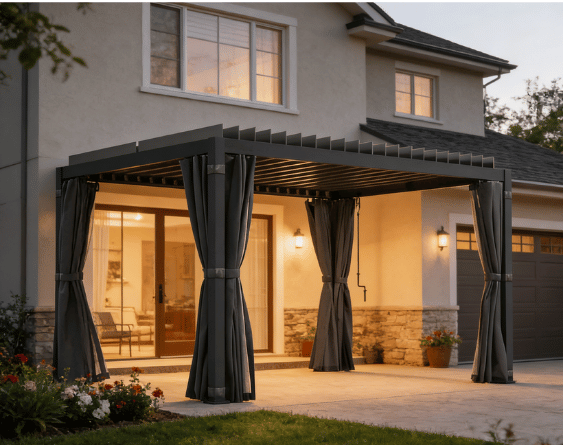

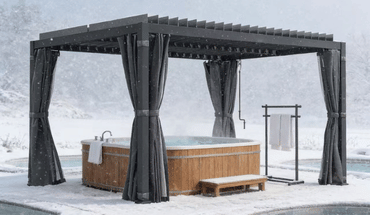

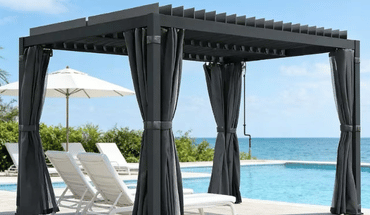

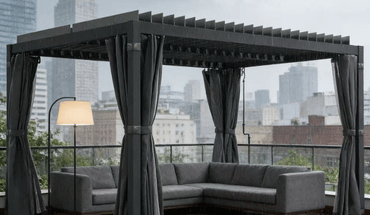

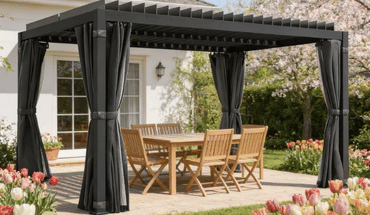

Your Clients' Application about the Pergola
Assemble for The Pergola Louvered Roof
If you encounter any problems during installation, please feel free to contact us at any time！

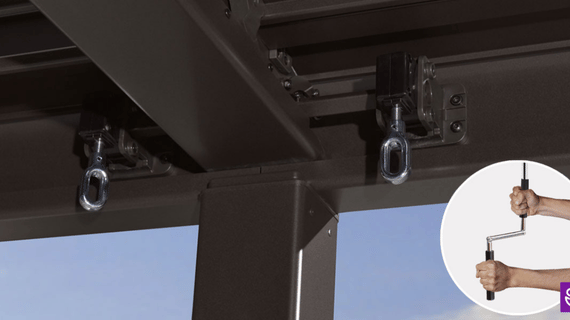

Hank Crank for Pergola
Adjustable Louvred Roof: With two louvre roofs that can be adjusted independently from 0-90°, you can adjust the angle of the louvres with a hand crank to choose the sunlight that suits you.

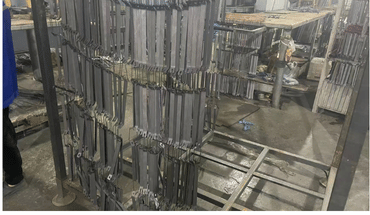

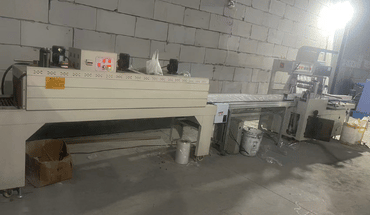

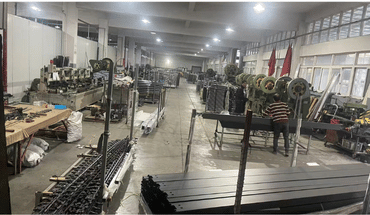

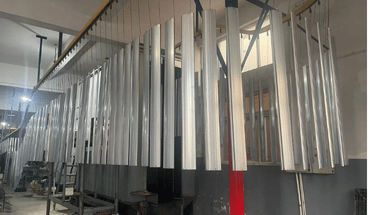

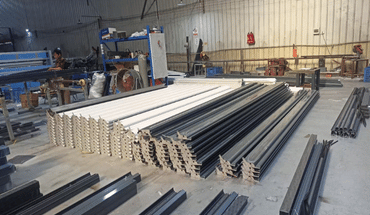

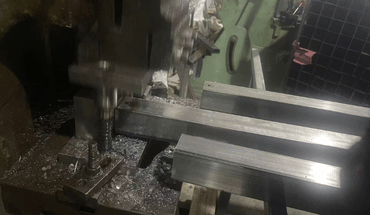

Production Procedure
Related Product for Louvered Pergola
Design and Produce Without Worries. Build Your Outdoor Pergola with Us Today!
End-to-End Customization
Factory directly
Low MOQ
Custom Design
Custom Logo
Custom Packaging
On time delivery
Caring label, fabric label and all related label solutions, color options, private labeling, and full product design adaptation to elevate brand uniqueness.
Flexible ordering with a 1set minimum, accommodating businesses of all scales, from start ups to large enterprises.
Our A-grade samples delivered in 7–10 days, bulk orders in 30 days, with expedited handling available to meet urgent deadlines.
24/7 Global Support.Professional assistance available 24/7 for urgent inquiries, backed by lifetime post-purchase maintenance to ensure lasting product excellence.
