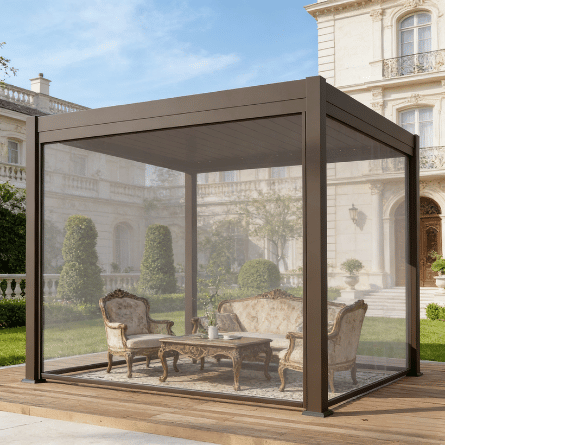

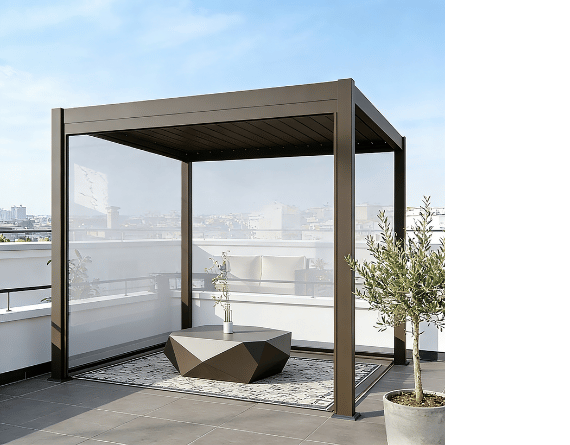

10*10feet Pergola
Producing All Size of Pergola with Privacy Screens
- 5*8ft. Full aluminum louvered pergola without fabric curtains
- 10*10ft .Full aluminum louvered pergola with mesh curtains
- 10*12ft. Aluminum frame pergola with steel louvered top
- 10*15ft. Wooden louvered pergola with automatic wall
- 10*20ft. Electronic aluminum louvered pergola
- 12*12ft. Aluminum pergola with private screens
- 14*14ft. Full aluminum pergola with assemble structure
Your Professional Pergola Manufacturer in China
We are a professional manufacturer and exporter specializing in outdoor leisure industry.With design advantages, full-process manufacturing capabilities and an integrated production system, we guarantee premium gazebo quality and competitive pricing. We offer high-quality, multi-spec gazebo products and supply chain solutions for global diversified customers, including e-commerce, retailers, supermarkets, wholesalers and importers.
To support customers in market expansion, we have a comprehensive quality assurance and service system: free gazebo samples are available for quality inspection before bulk orders, and detailed product images and production videos are provided for each order to track progress. With reliable quality, diverse products, flexible customization and attentive service, we have become a trusted gazebo supply chain partner.
Customized lightweight portable models for European and American cross-border e-commerce (best-selling in outdoor category); standard models for large supermarket chains (long-term repurchases for outdoor promotions); multi-spec bulk customization for wholesalers/importers (e.g., waterproof and sun-resistant models for Southeast Asian markets); and applications in multiple campsites providing aesthetic and practical rest facilities.
3*3m Pergola Specifications
- Pergola Size
- Pergola Material
- Pergola Function
Pergola Size
| Type | Louvered pergola |
| Motorised | No |
| Shape | Square |
| Colour | Anthracite |
| Size | 3 x 3 m |
| Area | 9 m² |
| Height to ridge | 2,57 m |
| Entrance height | 2,36 m |
| Height with closed slats | 2,50 m |
| Interior floor area | 8,89 |
| Floor area | 9 m² |
| To be fixed to the ground | Yes (anchor kit not included) |
| Crank handle | Yes |
| Pergola gross weight | 94.1kg |
| Overall external dimensions (pergola) | W301 x D301 x H250cm |
Pergola Material
| Pergola Parts | Materils | Size(MM)(L*W*T) | Qty |
| Leg Tube Liner | Aluminum | 100*100*1.3 | 4 |
| Leg Tube Liner | Aluminum | 96.7*96.7*1.2 | 4 |
| Left Crossbeam | Aluminum | 120*78*1.35 | 1 |
| Right Crossbeam | Aluminum | 120*78*1.35 | 1 |
| Front & Rear Crossbeams | Aluminum | 120*78*1.35 | 1 |
| Middle Crossbeam | Aluminum | 160*105*1.35 | 1 |
| Large Louver Slat | Aluminum | 15.1*151*1.1 | 24 |
| Small Louver Panel | Aluminum | 20.5*120*1.05 | 4 |
| Flat Aluminum Strip | Aluminum | 15*5.0 | 4 |
Pergola Function
| Wind resistance | 74 km/h |
| Load resistance | 66,4 kg/m² |
| Maximum permissible roof load | 597,6 kg |
| UV resistant | Yes |
| Anti-rust / Corrosion | Yes |
| Water drainage system | By drainage inside the posts |
| Waterproofing | Roof and slats |

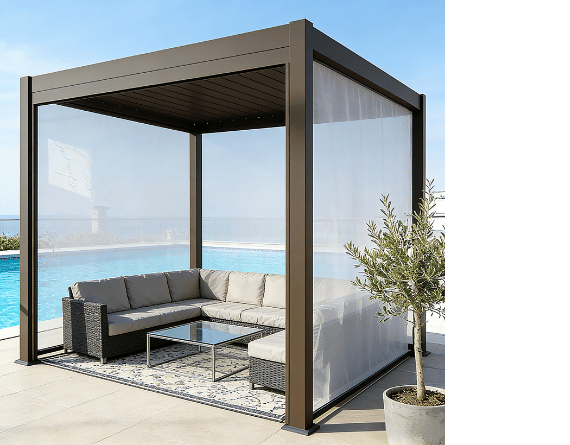

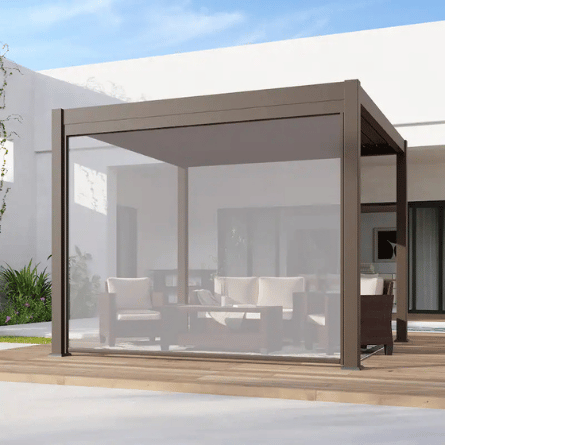

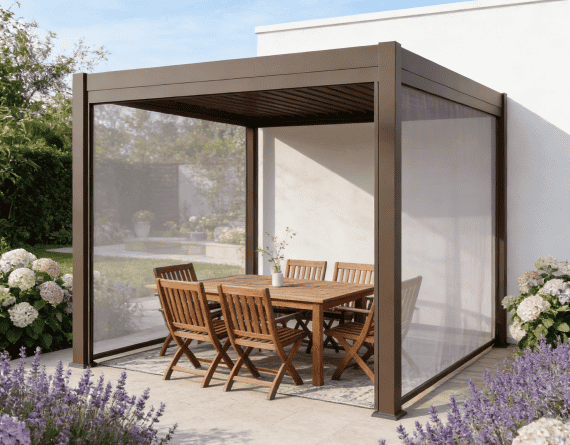

Features about the Pergola Screen

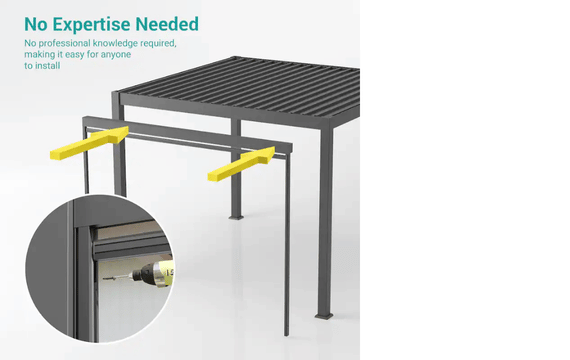

Pergola Screen Assemble

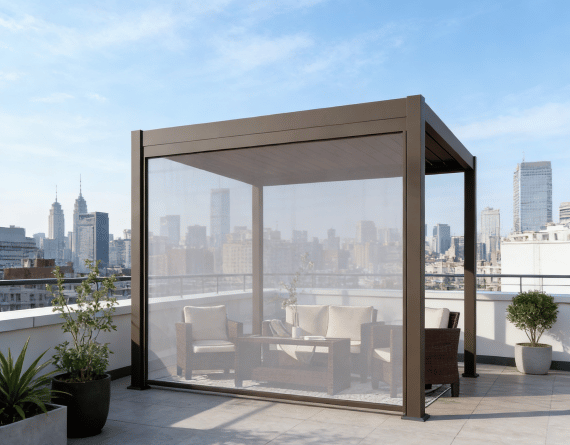

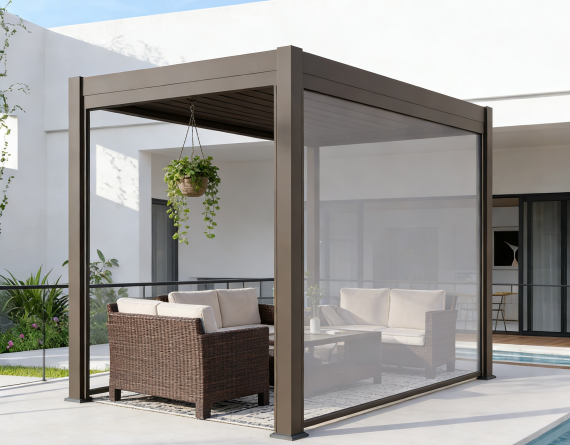

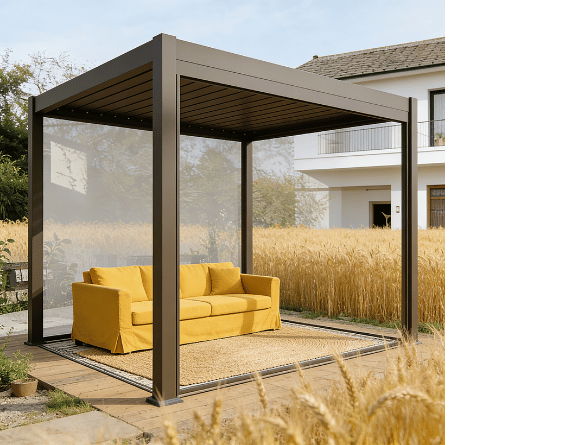

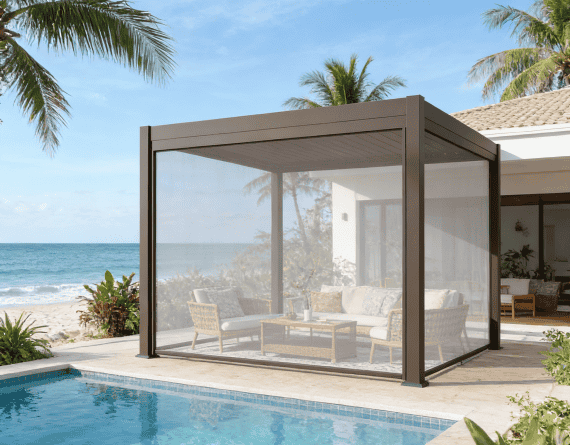

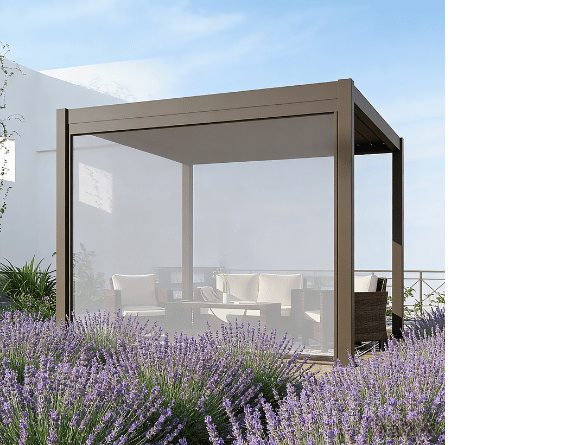

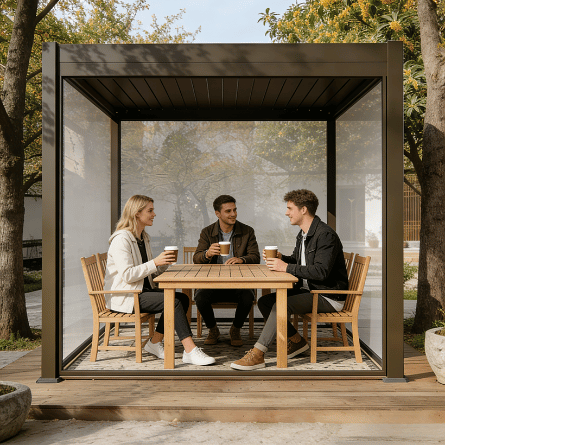

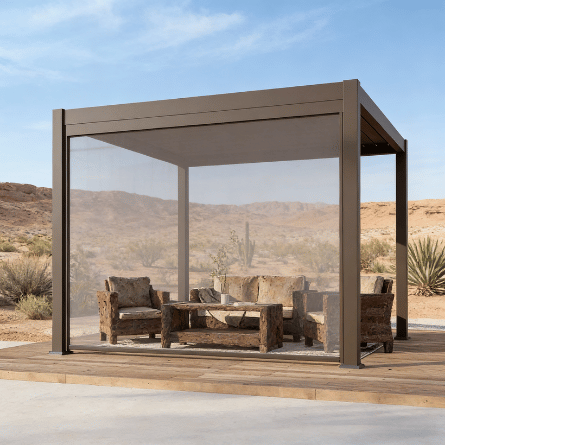

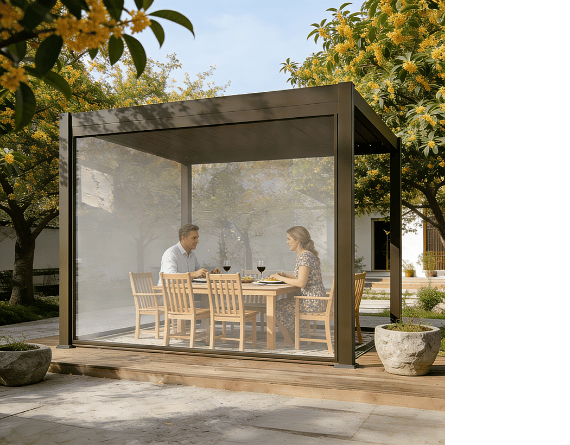

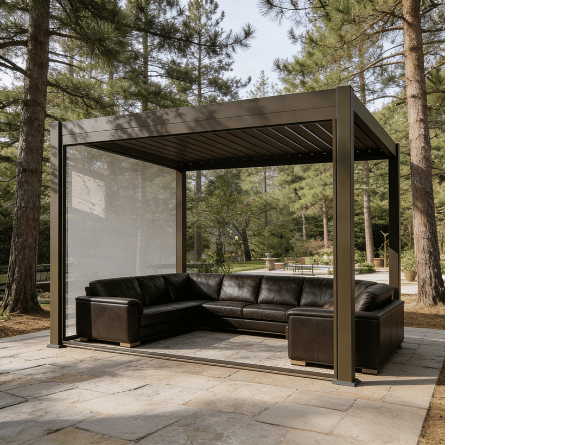

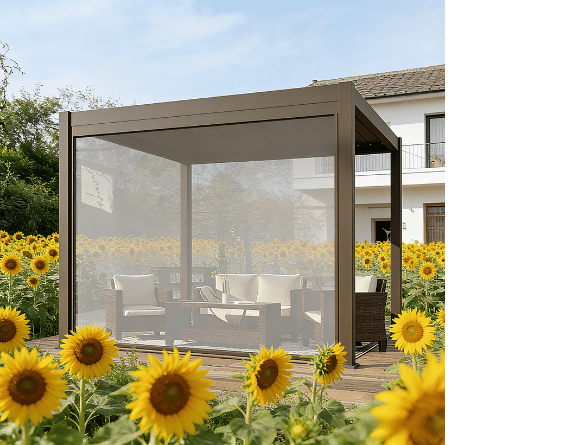

Heavy-duty privacy screen included for comfort.Take full advantage of your bioclimatic louvered pergola with this vertical privacy screen. It’s the essential accessory for protecting you from the sun and bad weather.This privacy screen is perfect for providing optimum comfort on your terrace and for enjoying good times with family and friends .

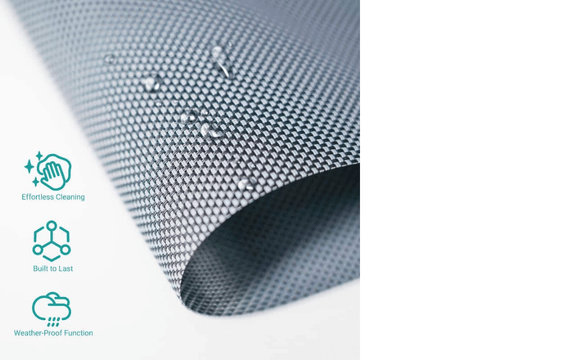

Pergola Screen Function
Solid, it is designed with quality materials. Its aluminium side panel and Textilene fabric offer effective resistance to UV rays and bad weather. For added safety, the privacy screen must be retracted when you’re away or in strong winds (over 50km/h).

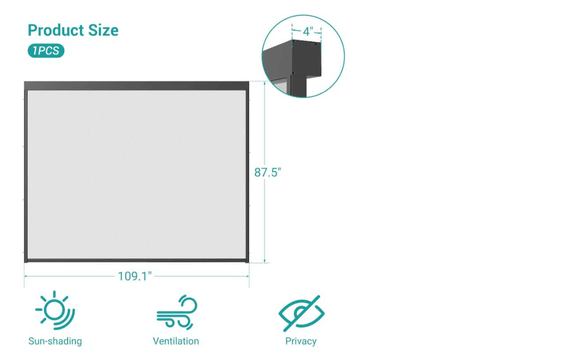

Pergola Screen Size
This privacy screen is perfect for providing optimum comfort for your 3*3 pergola on your terrace and for enjoying good times with family and friends . The height of the privacy screen can also be adjusted to suit your needs. Its levels and height are not predefined.Easy to use, all you have to do is manually lower the privacy screen to shelter from the wind or rain.
Why Choose Us as Your Leading Pergola Partner
Equipments to Produce Pergola
- Pickling Tanks
- Powder Coating Production lines
- Laser Cutting and Drilling Machines

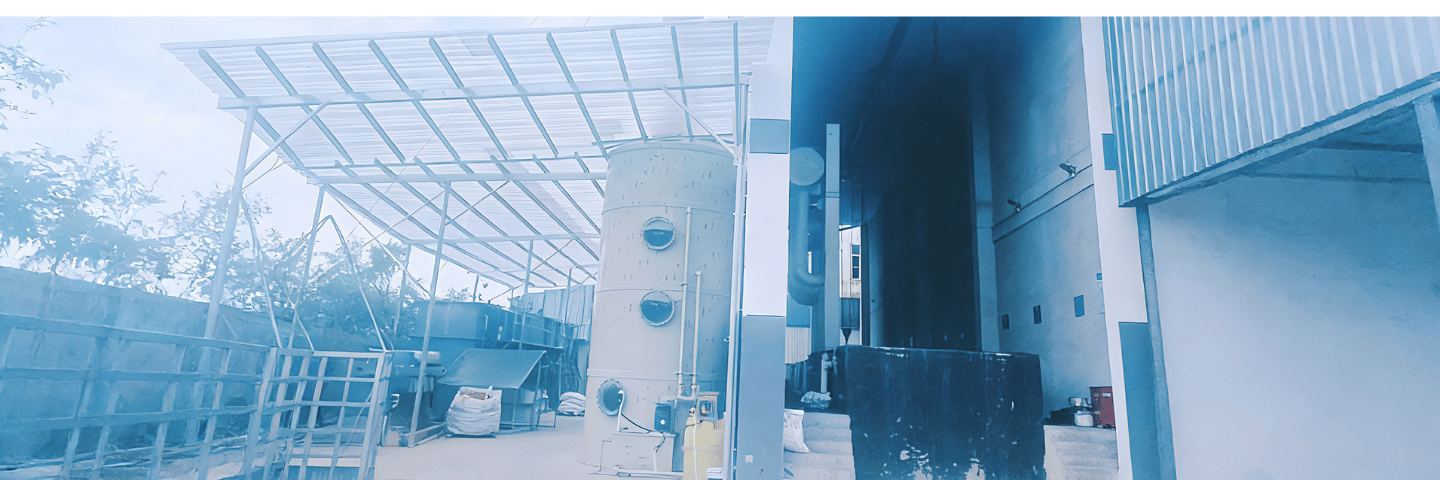

Pickling Tank Introduction

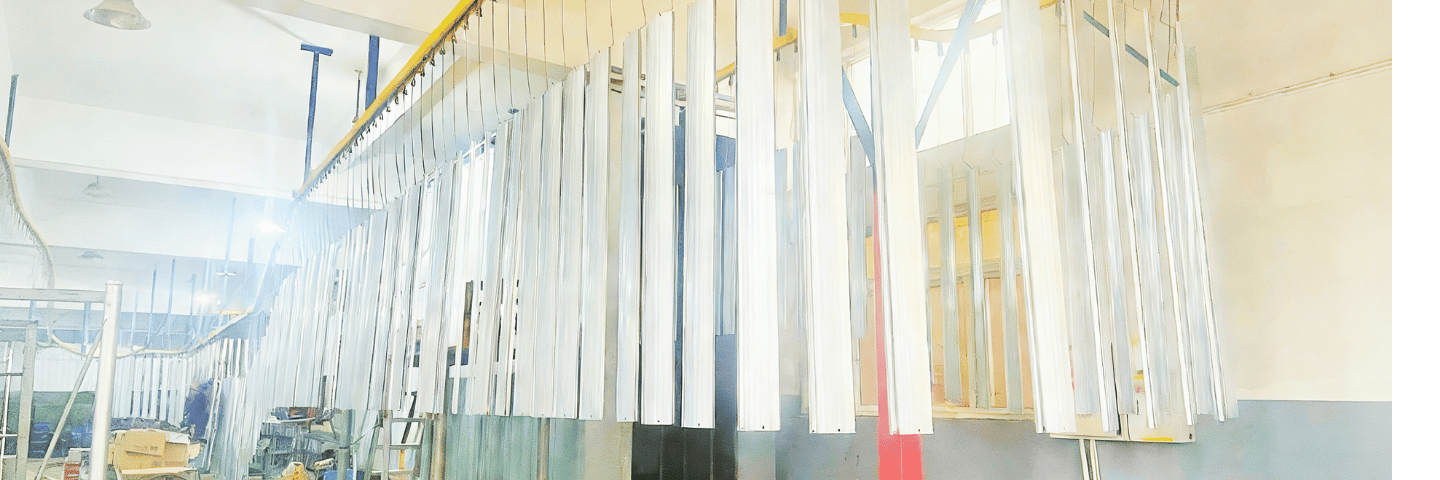

Powder Coating Lines Overview
We are equipped with an advanced gazebo electrostatic powder coating line for pergola metal frame, adopting international mainstream electrostatic spraying technology. The whole process includes strict pre-treatment (degreasing, derusting, phosphating), electrostatic powder spraying, high-temperature curing (180-200℃, 15-20 minutes) and cooling. This professional coating line ensures uniform and dense coating on pergola components (such as leg tubes, crossbeams and louvers), enhancing corrosion resistance, scratch resistance and color retention significantly. Compared with traditional painting, the powder coating process is more environmentally friendly with zero volatile organic solvents, and the powder utilization rate is nearly 100% due to the recycling system. It also enables richer color effects and longer service life of products, fully meeting the harsh outdoor environment requirements.

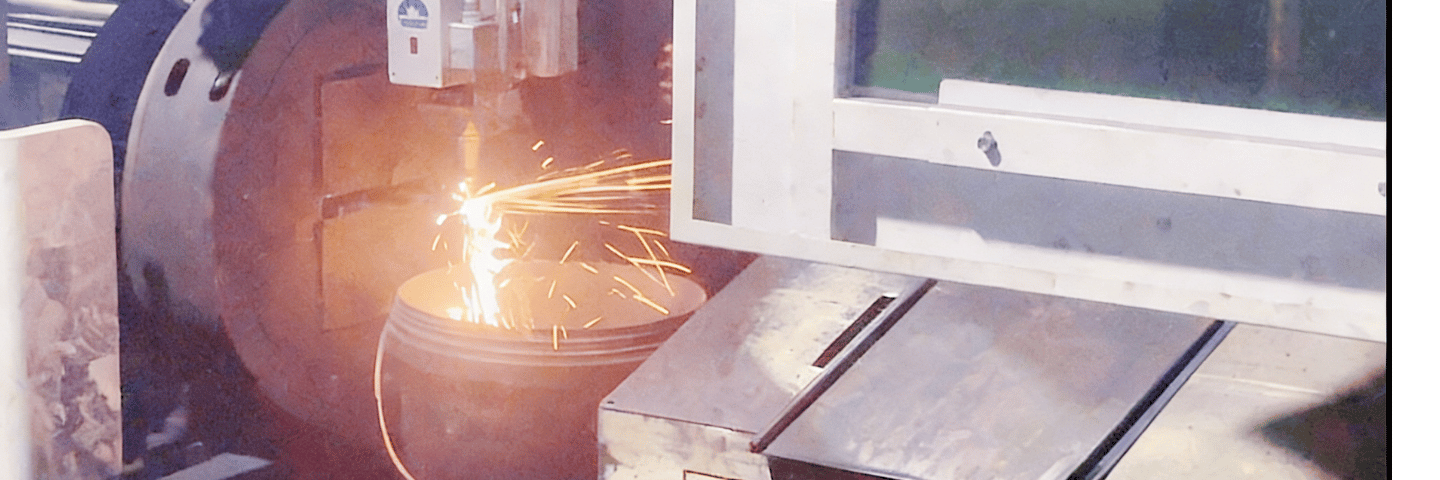

Laser Cutting Machine is Working
More Pergola Options to Delight Your Customers
Manufacturing for The Aluminum Pergola

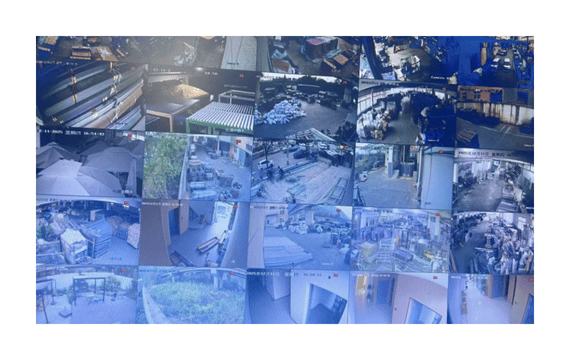

Monitoring Production
The Production Process of Louvered Pergola, you can See it from Our Remote Monitoring.The pergola production follows a standardized workflow.Covering five key stages to ensure product quality and consistency.Forming, Cutting; pickling; powder coating and assembly.

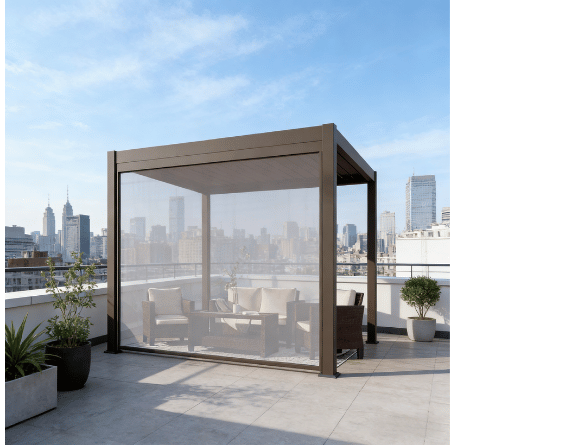

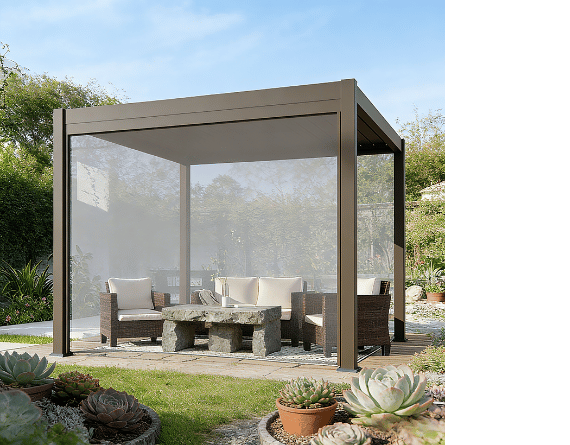

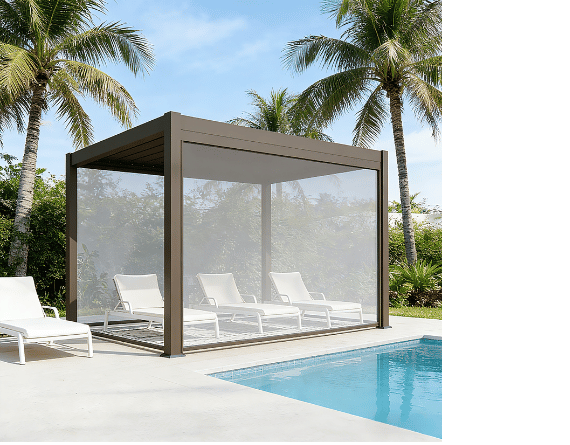

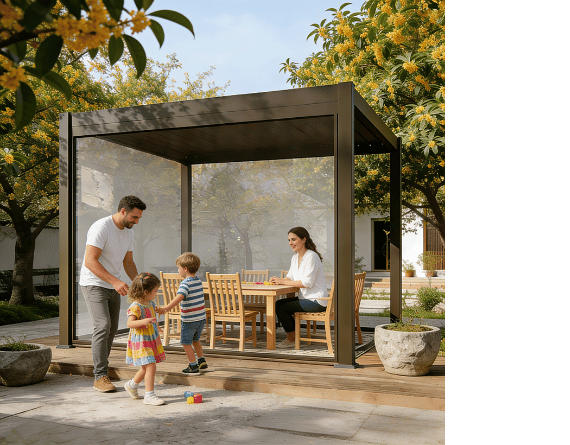

Pergola Applications for your Consumers
Your Clients May Want Pergola Related Product
Welcome E-commerce, retailers, wholesalers, contractors and importers to contact us for more details!
pergola, gazebo, and related outdoor products such as market umbrella, banana umbrella,Roma umbrella, umbrella base,LED umbrella and some outdoor furnitures
Normally, one containers is MOQ. However, it is negotiable according to your needs.
Sustainable Development & Brand Empowerment, flexible Customization & Efficient Service, technological Innovation & R&D Support.
We do rigorous testing including inner inspection and final inspection for pergola
